Dielectric ADSS Fiber Optic Cable G652D G657A1 G657A2 Outdoor Aerial Fiber Optic Cable

Наименование марки:	HXCOWO
Номер модели:	HX-DL1
MOQ:	1000 метров
цена:	negotiable
Подробная информация об упаковке:	Деревянный вал+экспортная карточная коробка

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Гуандун, Китай

Сертификация:

Силовые волоконно-оптические кабели, волоконно-оптические кабели

Количество проводников:

Наименование продукта:

Волоконный кабель ADSS

Применение:

Связь телекоммуникаций

Цвет:

Настройка цвета

Длина:

Установленная длина

Тип волокна:

Г652Д/Г657А1/Г657А2

Количество волокон:

2-288 ядров

Куртка:

ПВХ LSZH LSOH PE HDPE

Служба:

ODM OEM принимает

Порт:

Шэньчжэнь

Поставка способности:

1500000 часть/частей в Месяц

Выделить:

Dielectric ADSS Fiber Optic Cable

G657A2 Outdoor Aerial Fiber Optic Cable

ADSS Fiber Optic Cable G652D

Характер продукции

2-288 Core Dielectric ADSS Fiber Optic Cable G652D/G657A1/G657A2 for Outdoor Aerial

PRODUCT PARAMETERS
Single Sheath
Reference outer diameter (mm)	Reference weight (Kg/Km)			Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
Reference outer diameter (mm)		PE outer sheath	AT outer sheath	Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
9.0	75	85	1.2	3	7
9.8	80	90	1.5	5	10
10	90	100	2	6	15
10	90	100	2.2	8	18
Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)			Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)	suitable span (M)
3	4.5			-40~+60	1.2	50
3.5	7			-40~+60	1.3	100
4.5	8.3			-40~+60	1.3	150
7.5	9.5			-40~+60	1.3	200

Double Sheath
Reference outer diameter (mm)	Reference weight (Kg/Km)			Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
Reference outer diameter (mm)		PE outer sheath	AT outer sheath	Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
11.5	125	136	1.5	4	10
12	132	142	2.25	6	15
13.3	137	148	3	8	20
13.6	145	156	3.6	10	24
13.8	147	159	4.5	12	30
14.5	164	177	5.4	15	36
14.9	171	185	6.75	18	45
15.1	179	193	7.95	22	53

Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)	Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)	Suitable span (m) (corresponding to meteorological conditions)
Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)	Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)					A	B	C	D
4.6	7.6	-40~+60	1.8	160	100	140	100
7.6	8.3	-40~+60	1.5	230	150	200	150
10.35	9.45	-40~+60	1.3	300	200	290	200
13.8	10.8	-40~+60	1.2	370	250	350	250
14.3	11.8	-40~+60	1.0	420	280	400	280
18.4	13.6	-40~+60	0.9	480	320	460	320
22	16.4	-40~+60	0.6	570	380	550	380
26.4	18	-40~+60	0.3	670	460	650	460

Meteorological region	Wind speed (m/s)	Icing (mm)	Extra negative (N/m)
A	25	0	0.7
B	35	0	0.7
C	10	5	2.5
D	10	10	4.4

PRODUCT DESCRIPTION

ADSS POWER DEDICATED

NON-METALLIC ALL-DIELECTRIC SELF-SUPPORTING AERIAL OPTICAL CABLE

Waterproof and sunscreen

Fast and stable

Low loss

Pressure and wear resistance

IMPORTED MATERIALS

LOW LOSS AND HIGH SPEED SPLICING

Using A-grade fiber core, the attenuation and dispersion characteristics are fully optimized, and precise geometric parameters ensure low splicing loss and high splicing efficiency

TENSILE AND WEAR-RESISTANT/GOOD FLEXIBILITY

Small outer diameter, light weight, flame retardant, easy to peel off, and highly flexible

Tight-fitting dry structure facilitates construction and maintenance

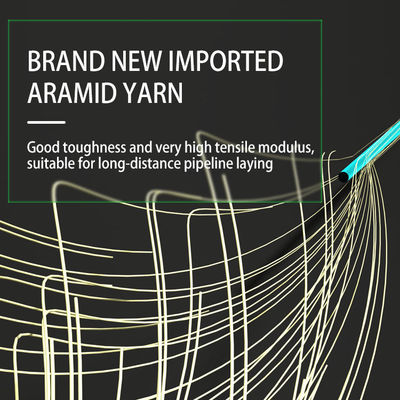

BRAND NEW IMPORTED ARAMID YARN

Good toughness and very high tensile modulus, suitable for long-distance pipeline laying

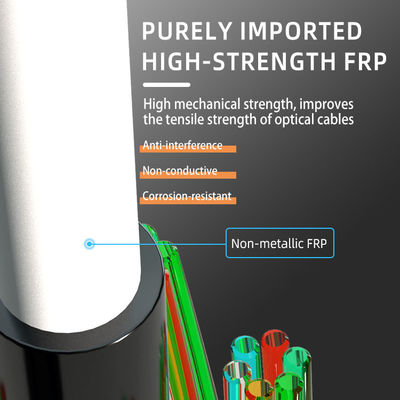

PURELY IMPORTED HIGH-STRENGTH FRP

High mechanical strength, improves the tensile strength of optical cables

Anti-interference, non-conductive, corrosion-resistant

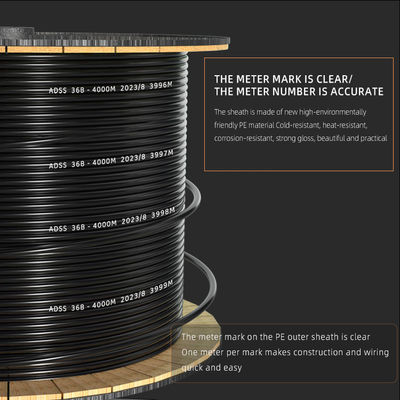

THE METER MARK IS CLEAR/THE METER NUMBER IS ACCURATE

The sheath is made of new high-environmentally friendly PE material

Cold-resistant, heat-resistant, corrosion-resistant, strong gloss, beautiful and practical

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
